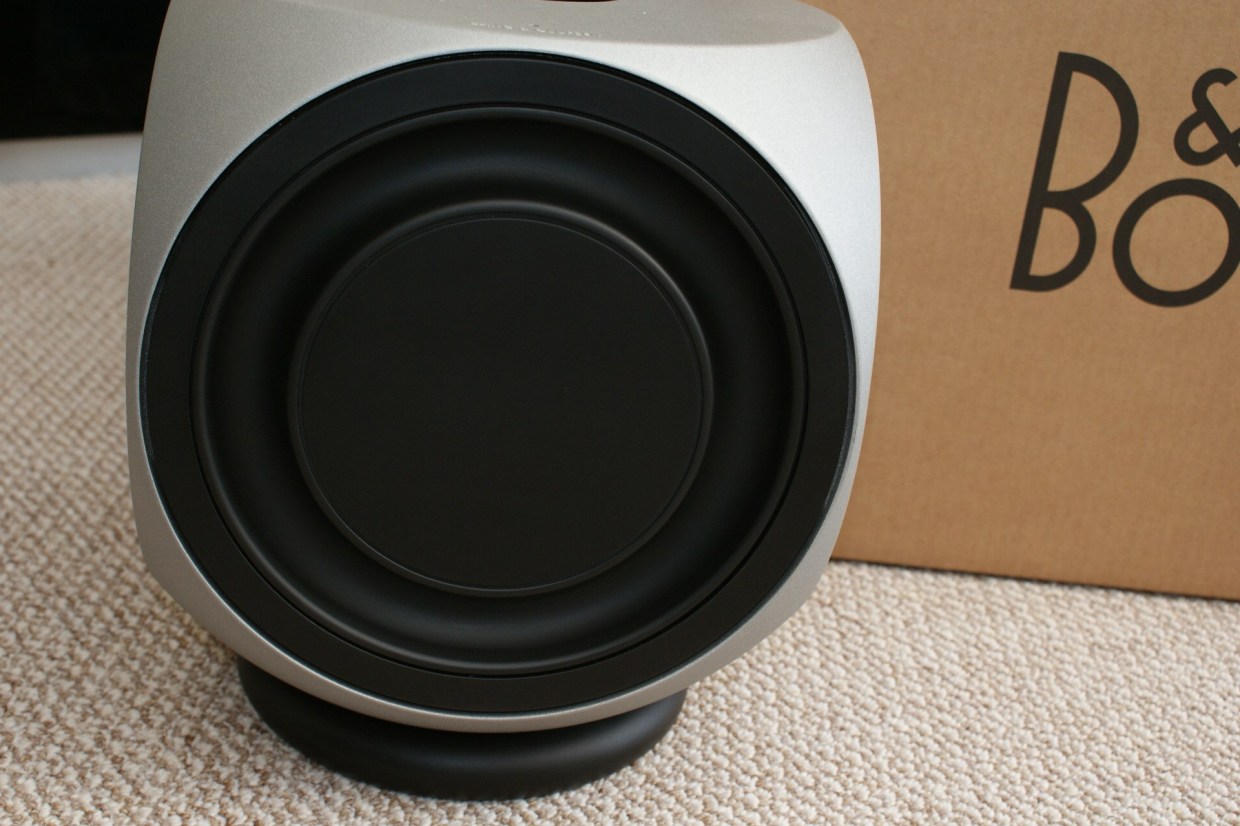

The new powerful BeoLab 2 adds a totally new dimension to the Bang & Olufsen sound experience. As digital technology opens up a whole new world of sound, the compact BeoLab 2 sub-woofer lets you experience a deep bass sensation that you only thought possible at the cinema or concert hall. Reproducing the low frequency sounds that normal loudspeakers can’t reproduce, BeoLab 2 utilities its built-in 850 watt amplifier to ensure that you no longer only hear your favorite piece of film or music, but feel it as well.
A good surround sound setup needs an exceptional sub-woofer and you will be amazed at the powerful delivery of the BeoLab 2. This little magic sub-woofer will be there whenever your music system reaches for low bass, lending precise and deep assistance to both classical and modern music as well as movies.
Looking for a good reason

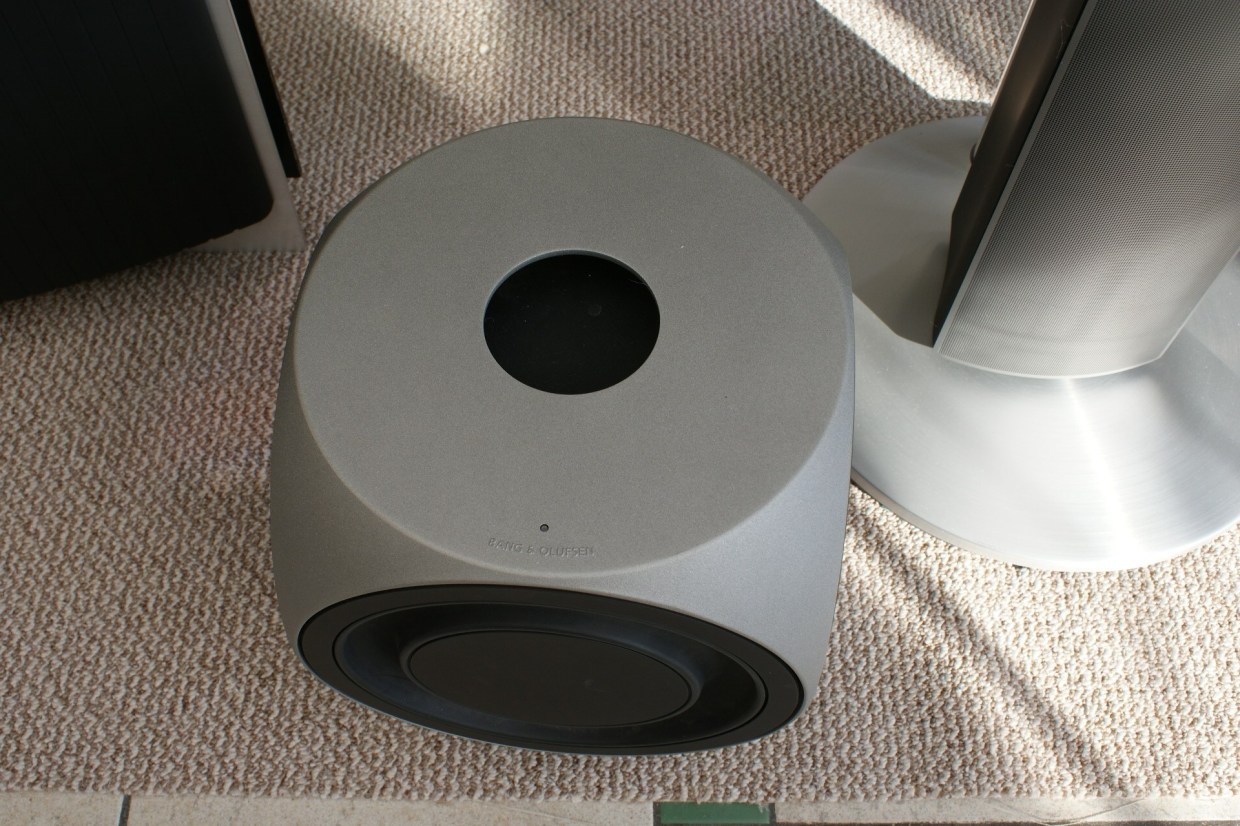

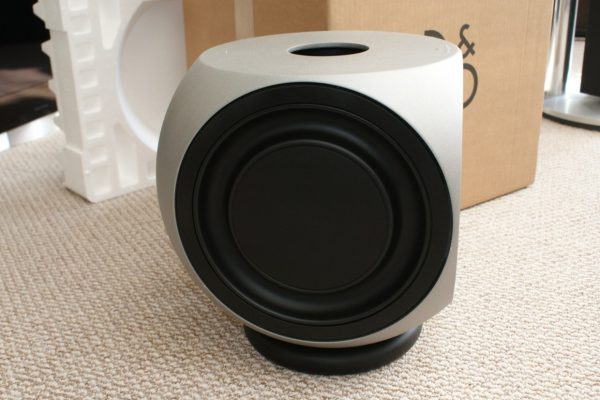

The rounded shape of BeoLab 2 is not an incidental design decision. The lack of sharp corners and edges reduces noise diffractions and reflections. There is no reason to hide it away. BeoLab 2 is designed to be seen, resting attractively on its rubber base.
Laying the foundation for high-class acoustics
All Bang & Olufsen loudspeakers are known for their impressive bass output in relation to their size. However, only BeoLab 5 has the authoritative deep bass that fully rounds off the acoustic image. Practically all other loudspeakers will benefit from adding a BeoLab 2 sub-woofer to the mix.

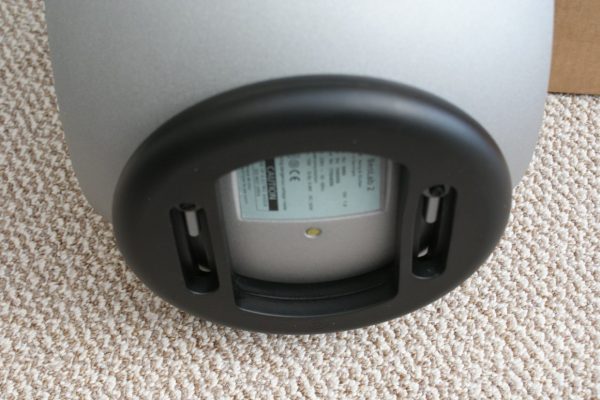

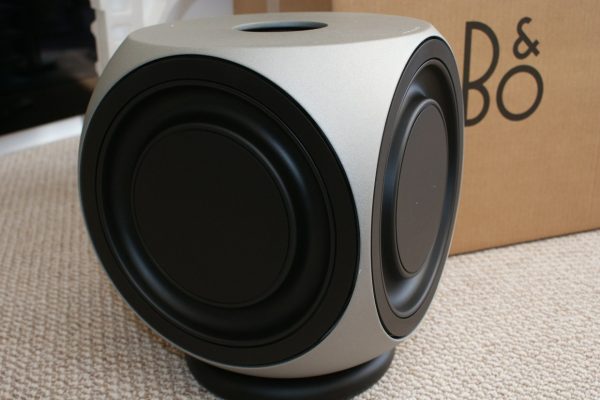

The effect of vibrations is always a challenge with powerful subwoofers. BeoLab 2 solves this problem in an ingenious and simple manner; two passive loudspeaker units placed directly opposite each other cancel out each other’s movements. The rubber ring base also insulates between BeoLab 2 and the floor
BeoLab 2 Active Subwoofer Product Specifications
Power Consumption Typical: 15 watts
Stand-by: 0.4 watts
Maximum Sound Pressure Level 110 dB (stereo)
Power amplifier module 1 unit Class D
Long-term maximum output power 850 watts
Effective Frequency range* 23 – 120 Hz (upper limit determined by setup)
Cabinet principle Double balanced passive radiator system Magnetically shielded Yes
Woofer Passive radiator 1 x 250 mm flat diaphragm
2 x 250 mm flat diaphragm
Net volume 13 litre
Bass equalization ABL (Adaptive Bass Linearisation),
Switch for loudspeaker position Free, Wall or Corner.
Input sensitivity Adjustable by three position switch. Corresponding to -7 dB (3), 0 dB (2) or +3 dB (1) for main speakers.
(* According to IEC 268-3 and 268-5.)
Connections: Power Link – Input 1
Power Link – Output 2
6861 EU 230 V
6862 GB 230 V
6863 USA – CND – TWN 120 V
6864 J 100 V
6865 AUS 240 V
6867 KOR 220 V
